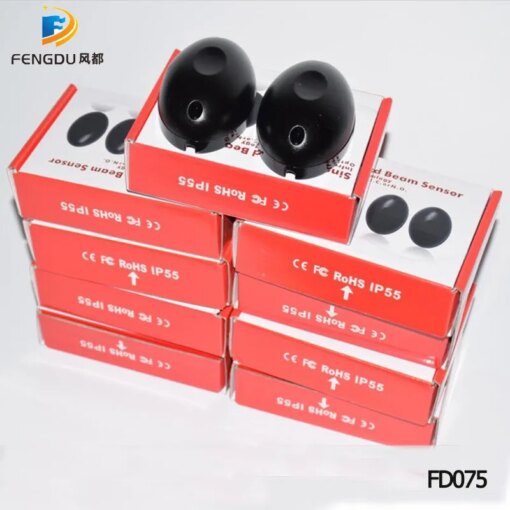

10pair/lots 10m 12VAC/DC Safety wired photocell infrared sensor for automatic doors and gate garage openers

10pair/lots 10m 12VAC/DC Safety wired photocell infrared sensor for automatic doors and gate garage openers

Main features:

* Anti-glare up to 50,000LUX, built-in automatic adjustment of glare filtration system, to avoid the impact of light or car lighting

* All-weather sealed rain (fog), dust (insects) and other integrated structure designed to work in harsh environments

* Detector automatically increases sensitivity when fog or bad weather conditions (AGC circuit)

* High level of anti-RFI / EMI capability

* Unique digital filter circuit design

* High-power transmitter devices, 90% sensitivity margin High-power infrared receiver on the tube, low-power processing technology Anti-lightning circuit design

* With rain cover design

* C-type relay output

* Adjustable beam interruption period to make it more flexible and adaptable

* Professional anti-interference optical cover

Technical Parameters:

* Product Model: ABO-20L

* Outdoor guard distance: 20m

* Indoor alert distance: 30m

* Sensing speed: 30ms

* Alarm Output – Normal: NC & NO contact capacity AV / DC 30V / 0.5mA

* Alarm linkage: yes

* Working voltage: DC12-24V

* Housing material: PC
