433 Mhz Universal Remote Control Switch ...
3.85€ – 19.83€
Shipping Information: Shipping period can range from 1 week to 90 days, depending on your location and product availability.
433 Mhz Universal Remote Control Switch Rf Relay 5V 30V 1CH 10A Receiver and Transmitter for Smart Home Gate Garage Door Led
Product Application Area
Remote control garage door Remote control house door Remote control Lamp Remote control car led Remote control Gate and other remote control device.
Features

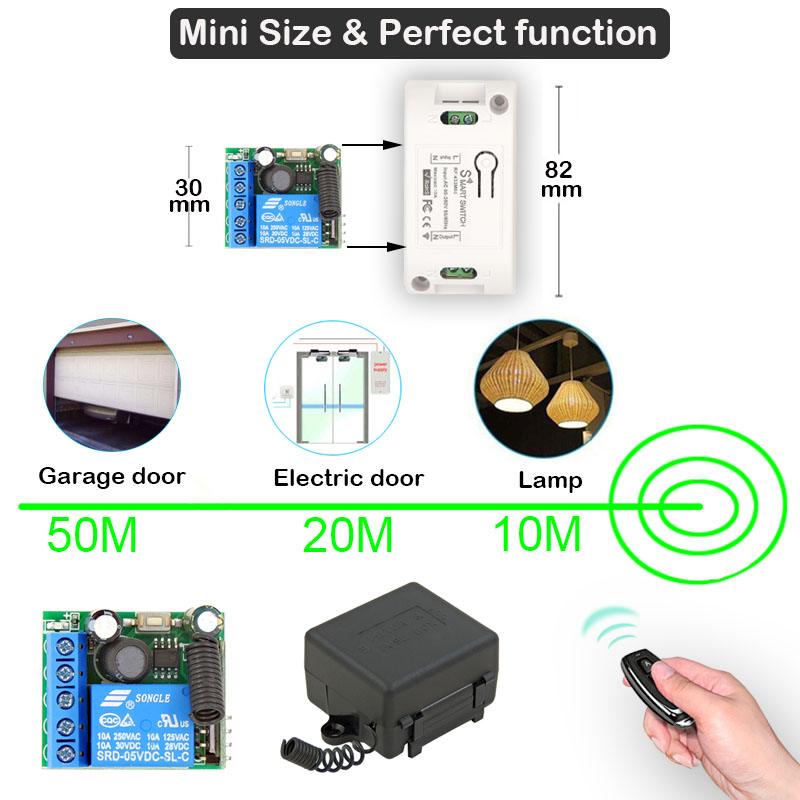

1:Mini Size and Perfect funtion:
-
Only 30mm*30mm in size, it can be put into 95% of the devices on the market;
-
50M control distance, meet the requirements of most environments.
2:Simple wiring method
3:Multiple of countdown modes to let you comfortable:
-
Let you to not worry about whether the appliance is turned off or not when you are resting or busy.
-
For example, when you are sleeping, you can set the function to automatically turn off the lights 15 minutes after turning on the lights.
Easy to use mode :
You can match the Remote Control with the Receiver Switch Module in 4 modes.
Remote mode 1: Momentary Mode
Press and hold on A button -> ON; Release the button -> OFF
Remote mode 2:Toggle Mode
Press A button -> ON; Press the same button again -> OFF
Remote mode 3: Latched Mode
Press one button “A”-> ON; Press another button “B” -> OFF
Remote mode 4: Time Delay Mode
Press and hold on A button -> ON; Release the button -> OFF
Remote mode 2:Toggle Mode
Press A button -> ON; Press the same button again -> OFF
Remote mode 3: Latched Mode
Press one button “A”-> ON; Press another button “B” -> OFF
Remote mode 4: Time Delay Mode
Press and hold on one button-> ON ; Release the button-> OFF (after 5 seconds,or 10 seconds,or 15 seconds, 3 ways of the time delay can be chosen)
Setting the Signal :
Remote mode 1 Momentary mode: Press learning button once,press A button once,succeed.
Remote mode 2 Toggle mode: Press learning button twice,press A button once.
Remote mode 3 Latched mode: Press learning button 3times,press A button once;press the B button once.succeed.
Time delay mode: Press learning button 4/5/6 times,press A button once,succeed.
Remote mode 1 Momentary mode: Press learning button once,press A button once,succeed.
Remote mode 2 Toggle mode: Press learning button twice,press A button once.
Remote mode 3 Latched mode: Press learning button 3times,press A button once;press the B button once.succeed.
Time delay mode: Press learning button 4/5/6 times,press A button once,succeed.
Clear the Signal :
Only Press learning button once 8 times.
Relay Receiver Product Data
-
Working voltage : DC 5V – 30V
-
Input vlotage : 1~250V
-
Output vlotage : 1~250V
-
Quiescent Current : <5MA
-
Max current : 10A
-
Max load : 2200W
-
RF frequency : 433MHz
-
Working temperature : -30~+80
-
Receiving Sensitivity : >97dbm
-
Amount of storage remote controls : 25 pieces
-
Support encoding : 1527 Leaning code /2262 fixed code
-
RF Operating mode : ASK superheterodyne wireless reception
-
Receiving range : Open space is more than 50 meters
-
Remote operating mode : Momentary Mode / Toggle Mode /Latched Mode / Delay Mode

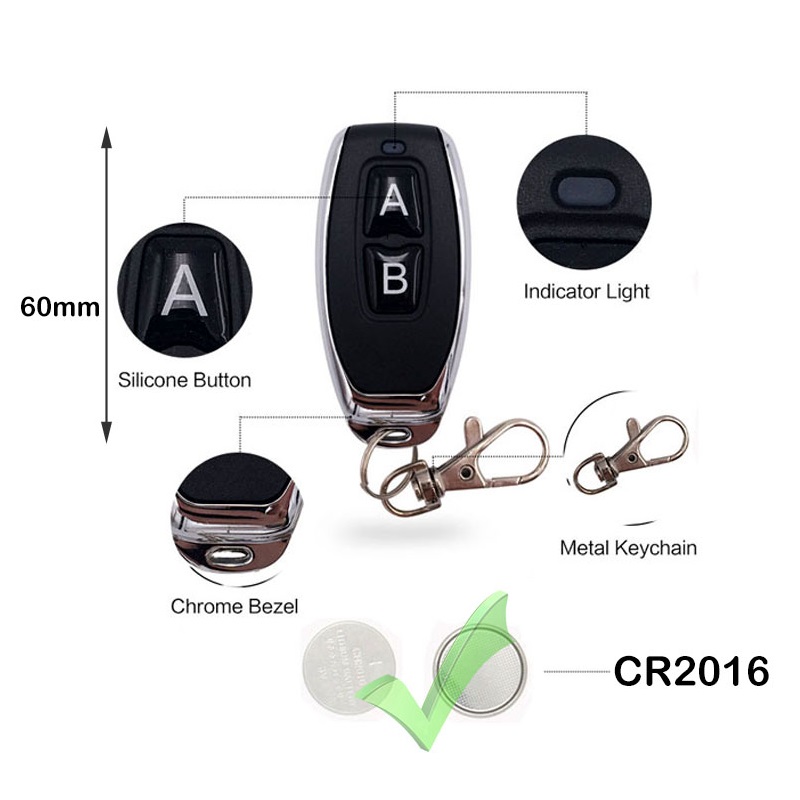

Remote Control Product Data
-
RF frequency : 433MHz
-
Support encoding : 1527 Leaning code
-
Transmitting range : Open space is more than 50 meters
-
Battery : 2pcs * CR2016 ( include )

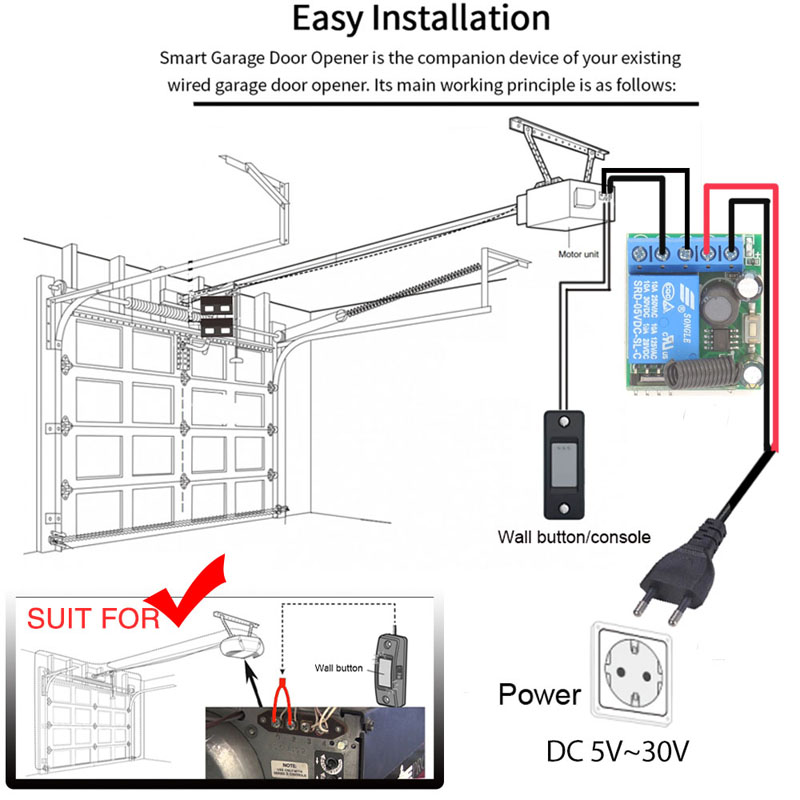

Two wiring methods
*If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*
| Support APP | No |
|---|---|
| Frequency | 433 MHz |
| Channel | 1 |
| Package | Yes |
| Model Number | Diese 5301 relay receiver board with remote transmitter |
| Wireless Communication | RF |
| Use | Universal,Lighting,Electric Door,Automated curtains,SWITCH |
| Brand Name | Diese |
| Origin | Mainland China |
| Certification | CE,RoHS |
| Working Voltage | DC 5V – 30V |
| Input Voltage | 1V-250V |
| Output Voltage | 1V-250V |
| Max Current | 10Amp |
| RF frequency | 433MHz |
| Working temperature | -30~+80 |
| Amount of storage remote controls | 20 pieces |
| Support encoding | 1527 Leaning code/2262 fixed code |
| RF Operating mode | ASK superheterodyne wireless reception |
| Receiving range | Open space is more than 50 meters |
| Remote operating mode | Momentary / Toggle/ Latched/ Delay Mode |
| Application scenario | Family, Farm, Factory, Office, Supermarket |
| Application2 | Garage, Light, Fan, Door, Gate, LED, Lamps |
