Radiolink SU27 Fighter RC Plane Radio Co...

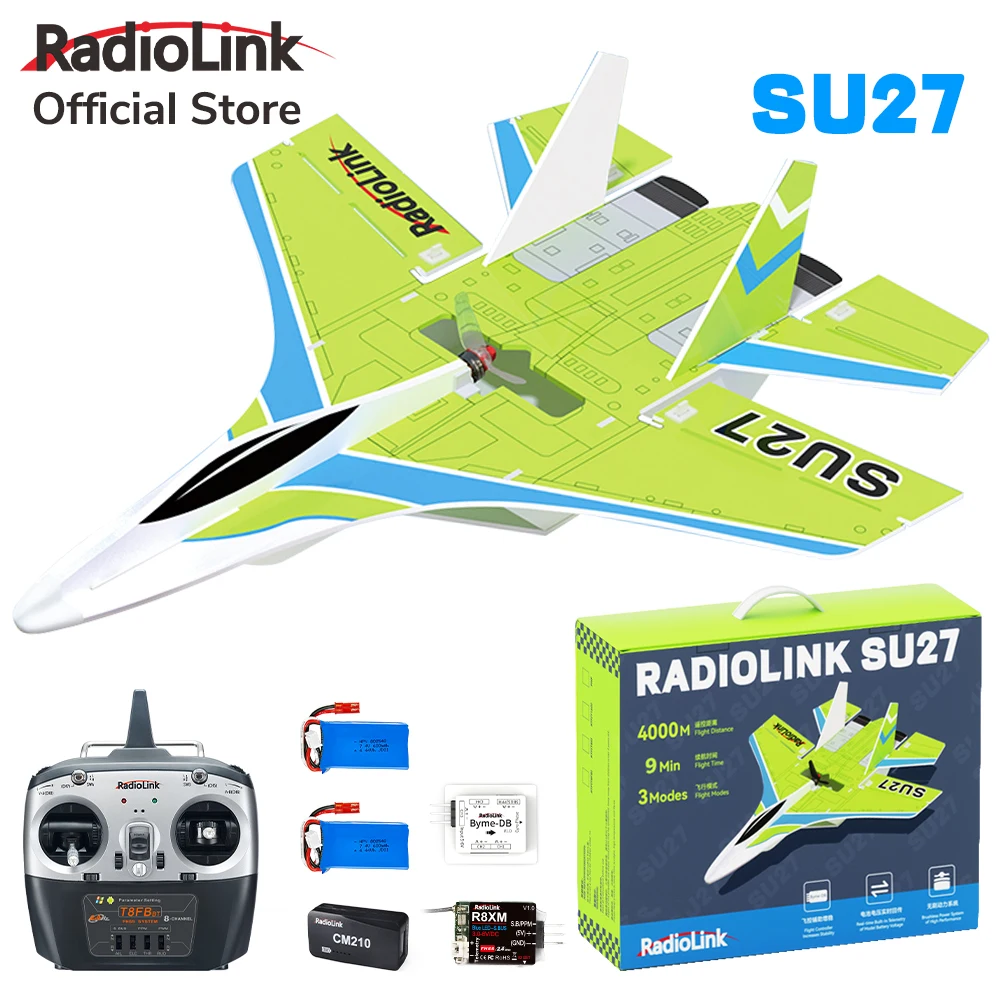

Radiolink SU27 Fighter RC Plane Radio Controlled Airplane(RTF) 4000KV Brushless Motor Fixed Wing Gyroscope Assist for Beginners(Hobby RC)

Main Features:

• Ready to Fly

• Safely fly in the square

• 4000 Meters Control Distance

• Three Flight Modes

• Moderate Breeze Wind Loading Rating

• Flight Controller Assist Balance

• Easy to Handle in Windy Conditions

• Built-In Real-time Battery Telemetry

• Lightweight Yet Strong PP Material

Detailed Features:

• READY TO FLY: The RTF SU27 rc plane includes everything needed to get it started, including 8 channels transmitter and receiver(built-in telemetry of engine voltage ), 4CH flight controller byme-db, 2pcs 2S lipo and 1 balance charger, 4000KV brushless motor and 15A ESC. Easy to take off, super friendly for fresh or rc beginner to get fun.

• Flight Controller Assist Enhance Stability: Incredibly smooth sport airplane handling and amazing aerobatic capability.SU27, with the flight controller Byme-DB, which includes the full-attitude algorithm, control algorithm, and digital filter algorithm works with the 3-axis gyroscope and 3-axis acceleration transducers to solve the problem of any attitude angle in the air. If you lose control of the airplane in the Gyro Mode or Manual Mode, simply activate the Stabilize Mode with the push of a button and release the control sticks. Byme-DB will help automatically return the airplane to level flight. Beginners can start with the Stabilize Mode and quickly master it even on the first flight.

• 3 FLIGHT MODES: Stabilize Mode has a flight controller assisting with aircraft balance and is suitable for the freshman who begins to practice the aircraft. The rolling angle limited is 70° and the pitching angle limited is 45°. Gyro Mode has three-axis gyro assists in enhancing flight stability but the aircraft will not back to level automatically. Manual Mode is without any assistance from the flight controller algorithm or gyro, all flight movements are realized manually, which requires the most advanced skills.

• Real-time Battery Telemetry: The receiver R8XM installed on the plane supports real-time telemetry the model voltage, and telemetry range is the same as the control distance up to 4000 meters.

Specifications:

• Product Name: Radiolink SU27

• Material: Polypropylene (PP)

• Wingspan:400mm

• Length:478mm

• Take off Weight: 116g (with battery)

• Flight Time: 9minutes

• Flight Mode: Stabilize Mode, Gyro Mode, and Manual Mode

• Flight Controller: Radiolink Byme-DB, support all transmitters with SBUS or PPM signal output

• Motor Spec.: SZ-SPEED 1306 4000KV brushless motor

• ESC: FLYCOLOR 15A brushless ESC

• Propellers:GEMFAN 3052 propellers

• Battery:HPY 7.4V 600mAh lithium battery (standard)

• Voltage Range: 7.4-11.1V(2S-3S lithium battery)

• Servo: 4.3gservo*2

• Charger:RadioLink CM210 2S LiPo battery balance charger

• Charging Time:20 minutes

• Radio Control:RadioLink 8 channels transmitter T8FB/ T8S

• Receiver: RadioLink 8 channels receiver R8XM

• Frequency:2.4GHz ISM band (2400MHz~2483.5MHz)

• Flight Distance:4000 Meters (with RadioLink T8FB/T8S, actual distance depends on the flight environment)

• Package Box Dimensions:41*51*13cm

RTF Package List

• SU27 plane x1

• 8 channels transmitter T8FB or T8S x1

• 600mAh 2S battery x2

• Mini Balance charger CM210 x1

• Charging cable x1

• Gemfan 3052 propeller x1

• Screwdriver x1

• Fiber tabe x1

• Package box x1

PNP Package List

• SU27 plane x1

• 600mAh 2S battery x2

• Gemfan 3052 propeller x1

• Screwdriver x1

• Fiber tabe x1

• Package box x1
