Universal Car Alarm AutoStart System APP Remote Control Engine Ignition Kit Push One Button Start Stop System Car Accessories

Q&A about the product:

1. What types of cars can be installed in this product?
This system is universal and it can be used on almost any 12V car, But condition is that the car itself is not has button or knob start engine, And It is easy to install, using the product manual is enough.

2. If I install it does it mean my car is unsafe and anyone can drive?
This system is very secure, it has a complete anti-theft system, keep lock when remote start, and auto shut down the engine when trespassing, not only that, it also has anti-hijacking function.

3. How far is the remote start?
The remote control distance is about 60 meters, the APP is controlled by Bluetooth distance is about 20 meters (different mobile phones have different Bluetooth power, some may be 50 meters, some may be 5 meters).

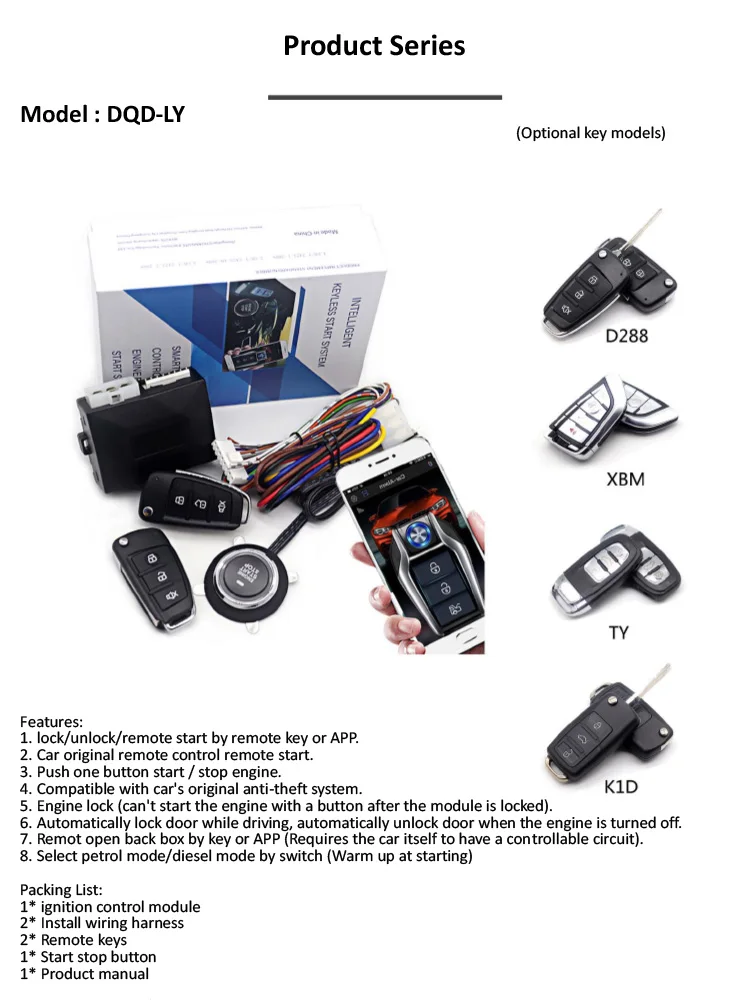

Model DQD-LY

Features:
1. lock/unlock/remote start by remote key or APP.
2. Car original remote control remote start.
3. Push one button start / stop engine.
4. Compatible with car’s original anti-theft system.
5. Engine lock (can’t start the engine with a button after the module is locked).
6. Automatically lock door while driving, automatically unlock door when the engine is turned off.
7. Remot open back box by key or APP (Requires the car itself to have a controllable circuit).
8. Select petrol mode/diesel mode by switch (Warm up at starting).

Packing List:
1* ignition control module
2* Install wiring harness
2* Remote keys
1* Start stop button
1* Product manual

This model can choose different remote control, you can buy it by clicking the picture link below,
different remote control is only different in appearance and the same function

Q&A about installation:

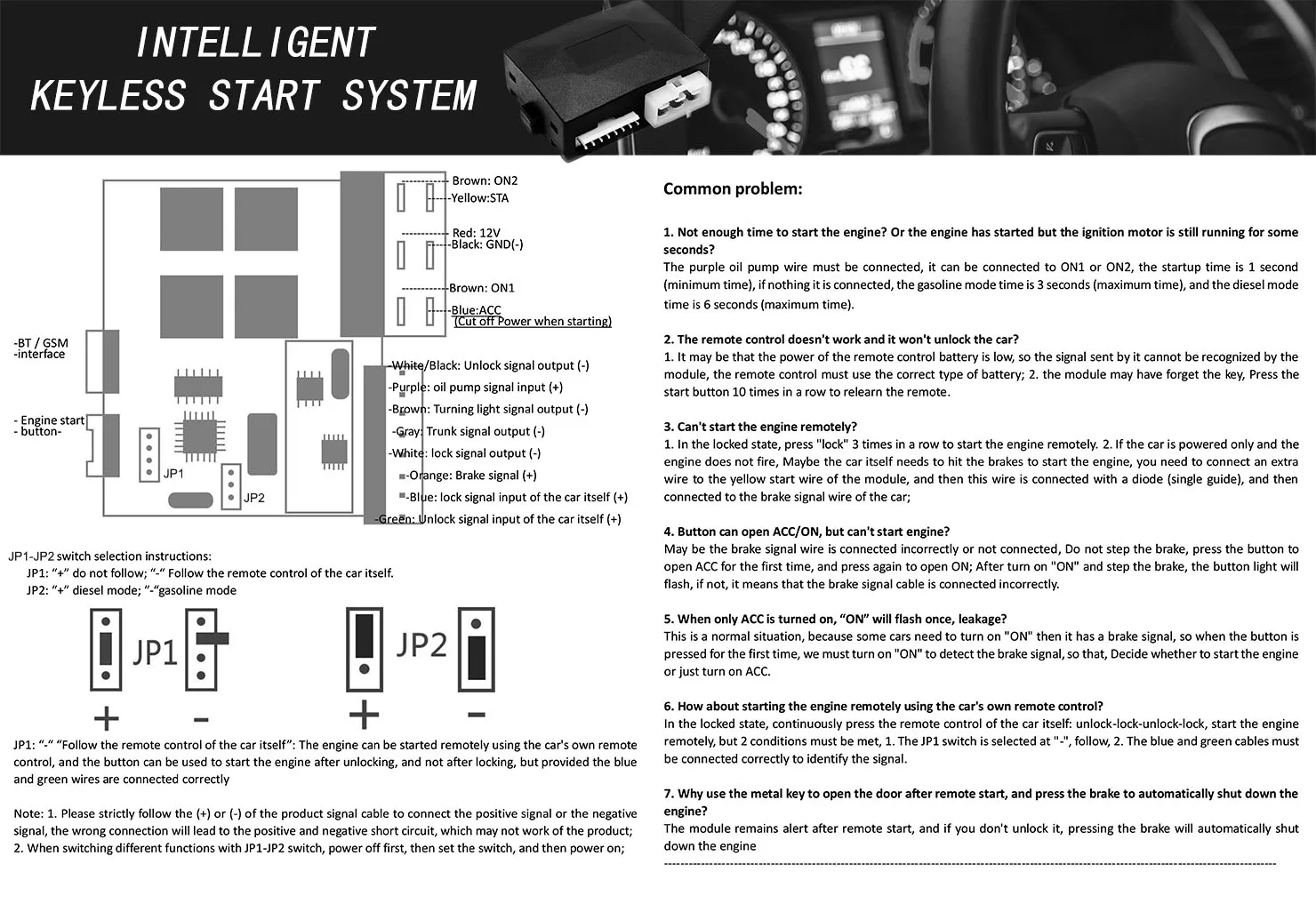

1. Is there any difference between ON1 and ON2? how to choose?
ON1 and ON2 are the same. If the original car has 2 ON, connect ON1 and ON2 respectively, regardless of the order.If there is only one ON in the original car, connect ON1 or ON2.

2. Blue ACC, what does power off at startup mean? How to connect it?
Blue ACC, it will automatically power off when the engine starting. Most of the car’s own ACC will also power off when the engine starting. If your car does not have ACC, there is only 1 or 2 “ON”. If so, we do not need to connect blue ACC; if your car does not have ACC, but has an “ON” engine starting will power off, if so, we can incorporate blue ACC into ON1 and then connect to the car.

3. Can’t start the engine remotely?
In the locked state, press “Lock” or “find” 3 times in a row to start the engine remotely. Make sure the operation is correct, if there is no feedback, the gray handbrake wire, it must be connected correctly, it can be grounded. Maybe the car itself needs to hit the brakes to start the engine, you need to connect an extra wire to the yellow start wire of the module, and then this wire is connected with a diode (single guide), and then connected to the brake signal wire of the car;

4. How to use the app?
First, scan the code to download the APP, (choose Android or Apple), then turn on the Bluetooth of your mobile phone, click the APP “learning key”, and then press the “lock” and “unlock” of the remote control at the same time, it is easy to complete.

If you want to put the start / stop button in another location, please click the link below to purchase the punch button set

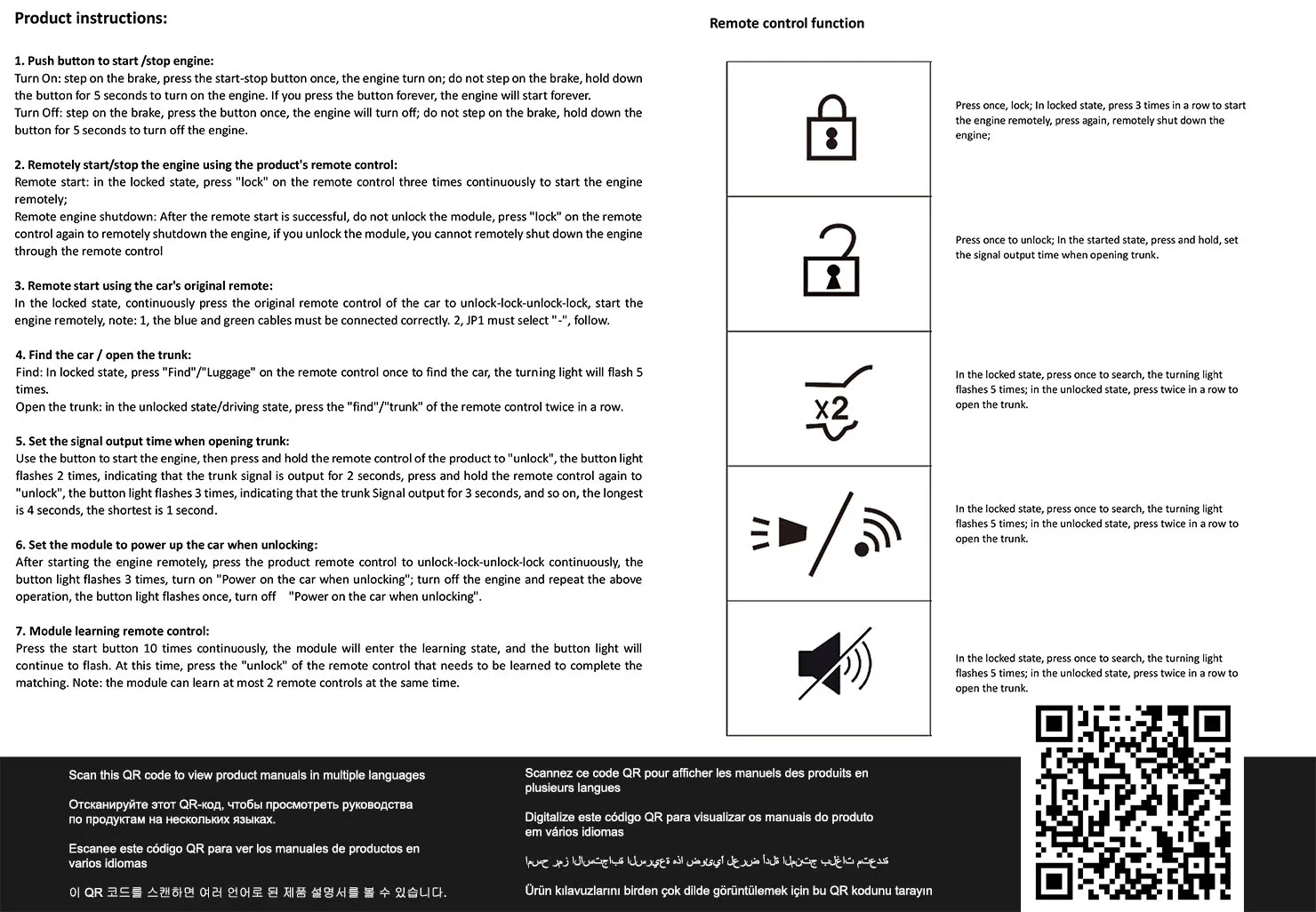

How to start and stop?

Turn On: step on the brake, press the start-stop button once, the engine turn on; do not step on the brake, hold down the button for 5 seconds to turn on the engine. If you press the button forever, the engine will start forever.

Turn Off: step on the brake, press the button once, the engine will turn off; do not step on the brake, hold down the button for 5 seconds to turn off the engine.

Matters Needing Attention

If your car has an anti-theft chip, and the chip induction coil at the ignition switch cannot be removed, you may need an additional small box to guide the chip signal.

If you need to buy a chip avoidance box, please click the image link below
